Bộ Camera Chuông Cửa Ezviz Có Hình HP7 giá sỉ - giá bán buôn

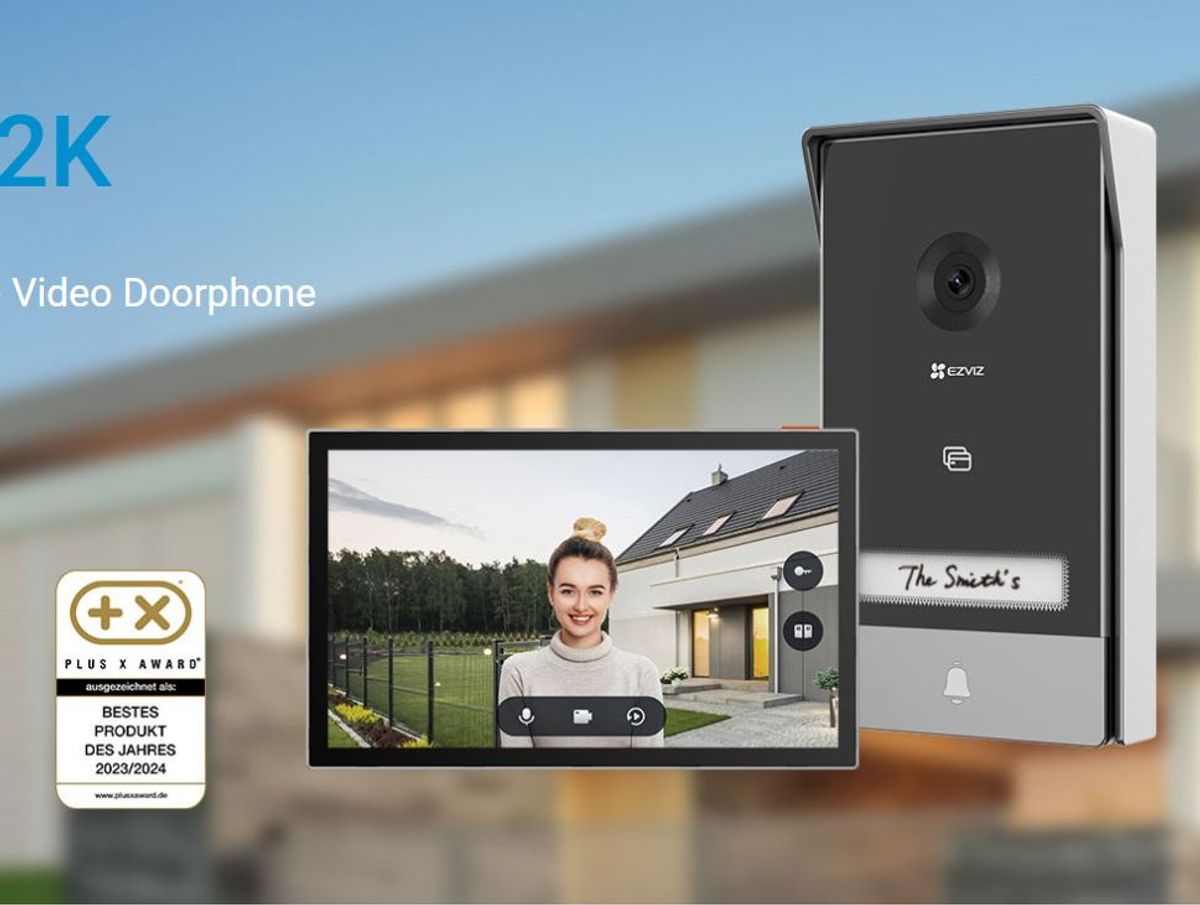

HP7: Smart Home Video Doorphone

Specifications

Specifications   Model CS-HP7-R105-1W2TFC   Outdoor Doorbell   Image Sensor 1/2.7" Progressive Scan CMOS (Supports low light sensitivity)   Lens 2.0 mm @ .2,viewing angle: 162° (Diagonal)   Day & Night IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m)   Max. Resolution 2048 × 1296   DNR 2D / 3D DNR   Video Compression H.265 / H.264   Frame Rate Max: 15fps; Self-Adaptive during network transmission   Connection and Function   Connection Method Wired connection (2-Wired, capable with 4-Wired), digital signal transmission   Transmission Distance Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m   Open the door (Gate) Support 2 wiring ports. 1-10m distance. The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A   Unlock (Electric strike plate) Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual.   Door Open Methods 1.RFID badge unlock (Badges × 3 pcs) 2.App remote unlock 3.Indoor display unlock   Outdoor Doorbell Interface   Audio Input Built-in high-sensitivity microphone   Audio Output Built-in high-power speaker   Doorbell Button Yes. The light can be set on or off.   Name Card Three handwritten name cards in total (one already on the intercom panel). The light can be set on or off.   Terminal Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate.   Functions   Intelligent Alarm Smart human motion detection, Lingering Detection   Tamper Alarm Supports   Video Intercom Long-distance video two-way talk   General   Operation Conditions -30°C to 60°C , Humidity 95% or less (non-condensing)   IP Grade Waterproof, with shield cover   Size 161 × 87 × 20 mm (6.34 × 3.42 × 0.79 inch)   Interior Display   Display size 7” touch screen   Resolution 1024 × 600   Interface   Audio Input Built-in high-sensitivity microphone   Audio Output Built-in high-power speaker   Button Screen On / Off Button   Terminal Two wiring ports to connect 1st outdoor doorbell.   Storage

Supports microSD card up to 512 GB

Supports EZVIZ Cloud storage

  Network Parameters   Protocol EZVIZ Cloud Proprietary Protocol   Interface Protocol EZVIZ Coud Proprietary Protocol   Protocol EZVIZ Connect Protocol   Wi-Fi Parameters   Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n, 802.11ac   Frequency Range 2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz   Channel Bandwidth Supports 20MHz   Security 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK   Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps   Function   Multiple ringtones Up to 20 ringtones   Functions Live view, playback, two-way talk, video call   General   Operation Conditions -10°C to 45°C, humidity 95% or less (non-condensing)   Weight Net weight: 855 g (30.16 oz) With package: 1825 g (64.37 oz)   Size 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch)   Power Supply DC 24V / 1A power supply, adaptor (100- 240Vac)   Power Consumption 8W, Max. 24W   In the box   In the box - Monitor   - Wall Bracket for Monitor   - Power Adapter for Monitor   - Drill Template for Monitor   - Intercom Panel   - Drill Template for Intercom Panel   - Screwdriver   - Badges (×3)   - Screw Kit (×2)   - Name Card (×2)   - Wires and Wire Connectors   - DC 24V Power Supply Jack Connector Cable

- Regulatory Information (×2)

  - Quick Start Guide   Certifications   Certifications CE / REACH / WEEE / RoHS
