Product name:

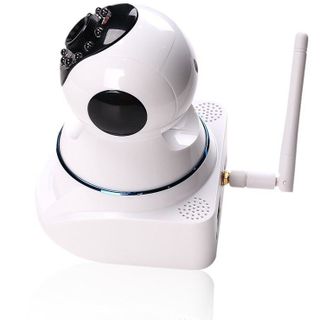

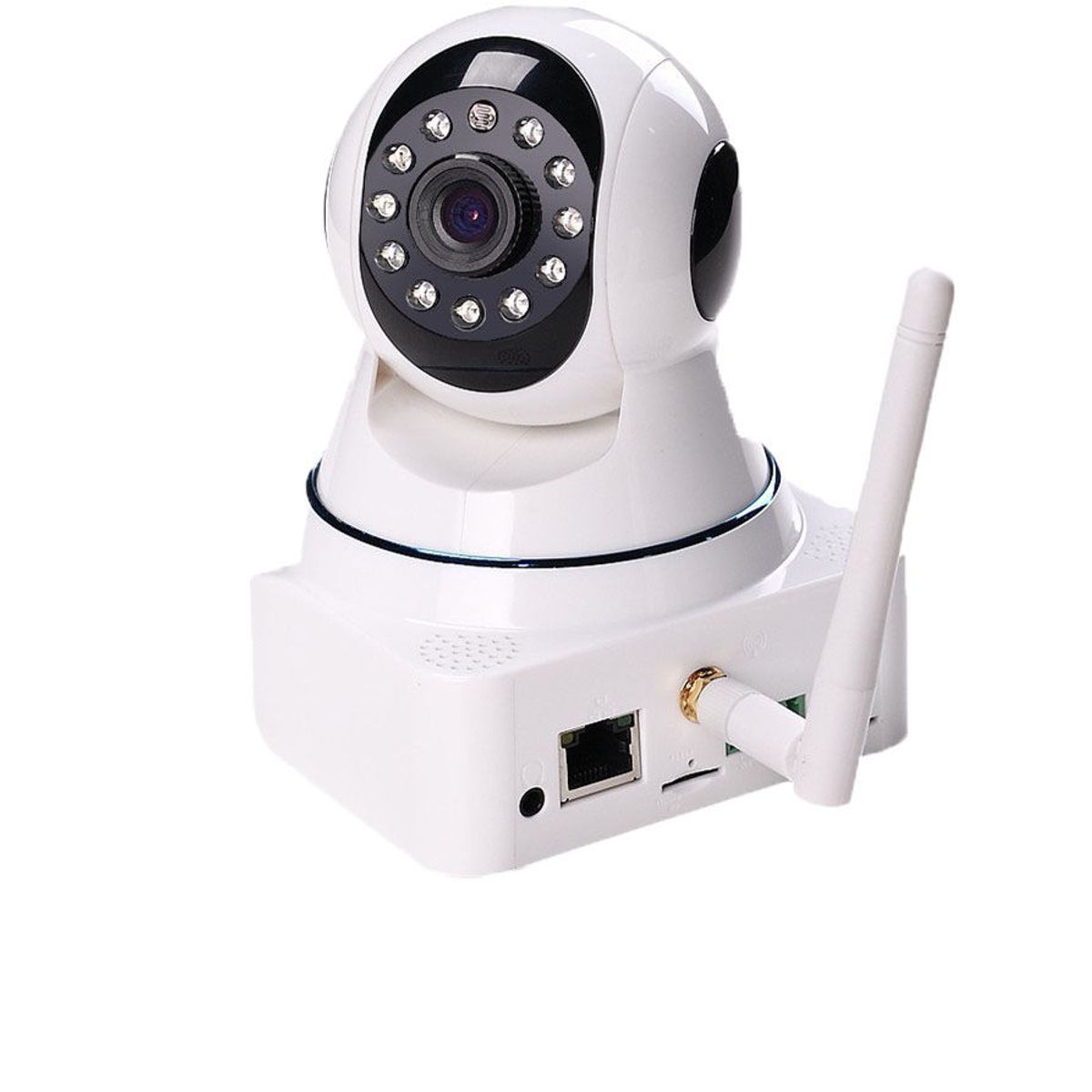

P2P high-definition network camera
The product model:
X7100
Technical parameters
Processor:
Hisilicon 3518E
Image sensor:
1/4 "HD CMOS 1000000 pixel CMOS sensor
Video format:
HD 1280*720P VGA 640*480, QVGA 320*240
Video coding:
H.264
Video frame rate:
1-30 frame
Video stream:
16Kbps ~ 4Mbps set
Video playback mode:
Mobile client + client computer
Audio input and output:
Input: a built-in microphone / automatic gain control output:built-in speakers / standard 3.5mm interface expansion
A built-in lens:
The optional 2.8-6.0mm 3.6MM standard
Infrared night vision effect:
Light sensitive resistance induction switch, the LED lampnight vision in 10 meters, optional IR-CUT automatic switching
Focusing method:
Manual
Minimum illumination:
0.1Lux
PTZ control:
Rotate 355 degrees to 90 degrees horizontal vertical
Local storage
Support the inserted 32GB MicroSD card, support 24 hours of video or alarm video
Support for multiple protocols:
TCP/UDP, IP, HTTP, SMTP, FTP, DHCP, DDNS, UPNP,NTP, PPPOE
The WiFi protocol:
IEEE 802.11b/g/n
Digital zoom:
Support 4 times digital zoom
Image rotation:
Mirror / inversion
Video control:
Support
Motion detection:
Support
The alarming action:
Push / sends information to the alarm server external alarm/ /FTP/ mobile client
User settings:
Level three user permissions / administrator, operator,visitors set
The firmware upgrade:
Through the network remote upgrade
System interface:
Audio input / output alarm input / output 10Base-T/100Base-TX Ethernet interface
Supply voltage:
5V2A
Working temperature:
0 DEG ~60 DEG
