Cáp mạng HIKVISION DS-1LN5EO-UU/E (Ngoài trời - Lõi đồng 0.5) giá sỉ - giá bán buôn

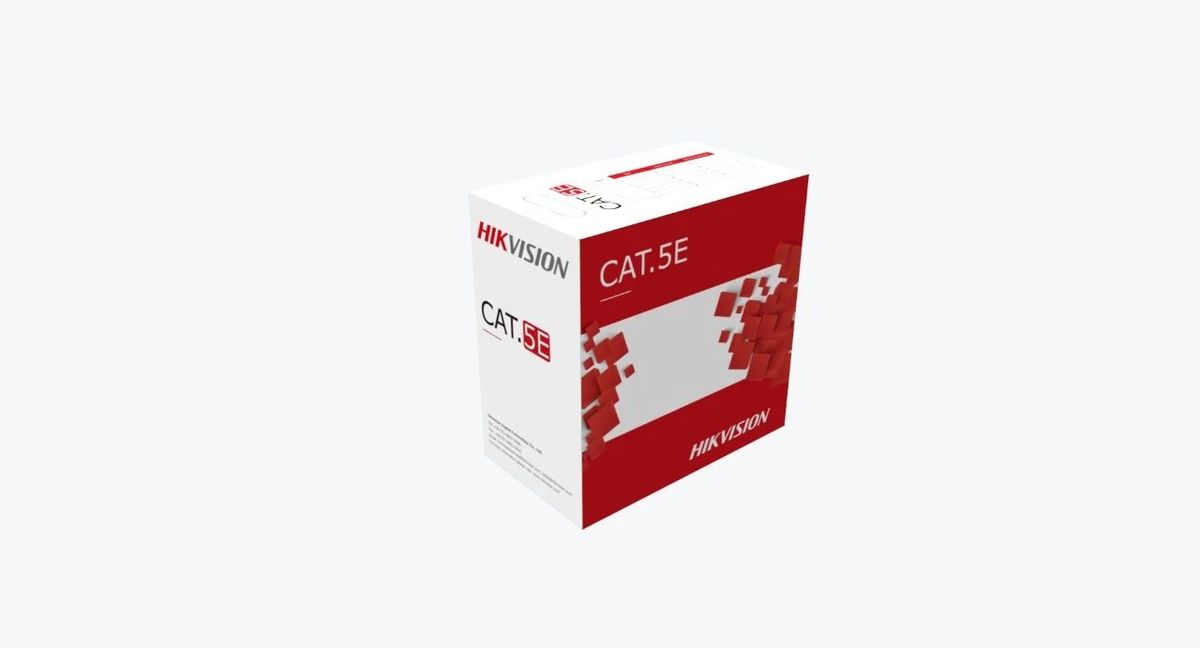

Cáp mạng CAT5E UTP Outdoor HIKVISION DS-1LN5EO-UU/E

- 305m CAT5E UTP Outdoor Network Cable (Solid Copper, 0.5 mm)

- Full diameter and full length

- Quality verified by Fluke test

- Guaranteed long PoE transmission distance

- 305 m CAT5E UTP Outdoor Network Cable

Specifications

Model DS-1LN5EO-UU/E General Core Color 1 White-Blue /Blue 2 White-Orange/ Orange 3 White-Green / Green 4 White-Brown/ Brown Packing Length (305±0.5)m Rip-Cord Yes Drain Wire No Sheath Physical Properties Before Aging Tensile Strength (Mpa) ≥10 Elongation(%) ≥300
Aging Period(℃×hrs) 100℃×24h×10d
After Aging Tensile Strength(Mpa) ≥12.5 Elongation(%) ≥125
Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks Electrical Characteristics (20℃) 1.0-100.0MHz Impedance(Ω) 100±15
1.0-100.0MHz Delay Skew (ns/100m) ≤552
DC Resistance(Ω/100m) max 9.5
DC Conductor Resistance Unbalance(%) max 2.0 Conductor Material Solid-Bare Copper Content 99.99% Nom.O.D.(Mm) 0.5±0.01 Insulation Material HDPE Diameter 0.88±0.03mm Sheath Thickness 0.55±0.03 mm External O.D. 5.0±0.3 mm Surface Clean, Frap, Satiation Material PE Color Black Surface Printing Letter Height 2.8mm Color White Print Error & Space ≤±0.5%, 1m
