DÂY TÍN HIỆU ÂM THANH MOGAMI 2 LÕI MÃ 2552 giá sỉ - giá bán buôn

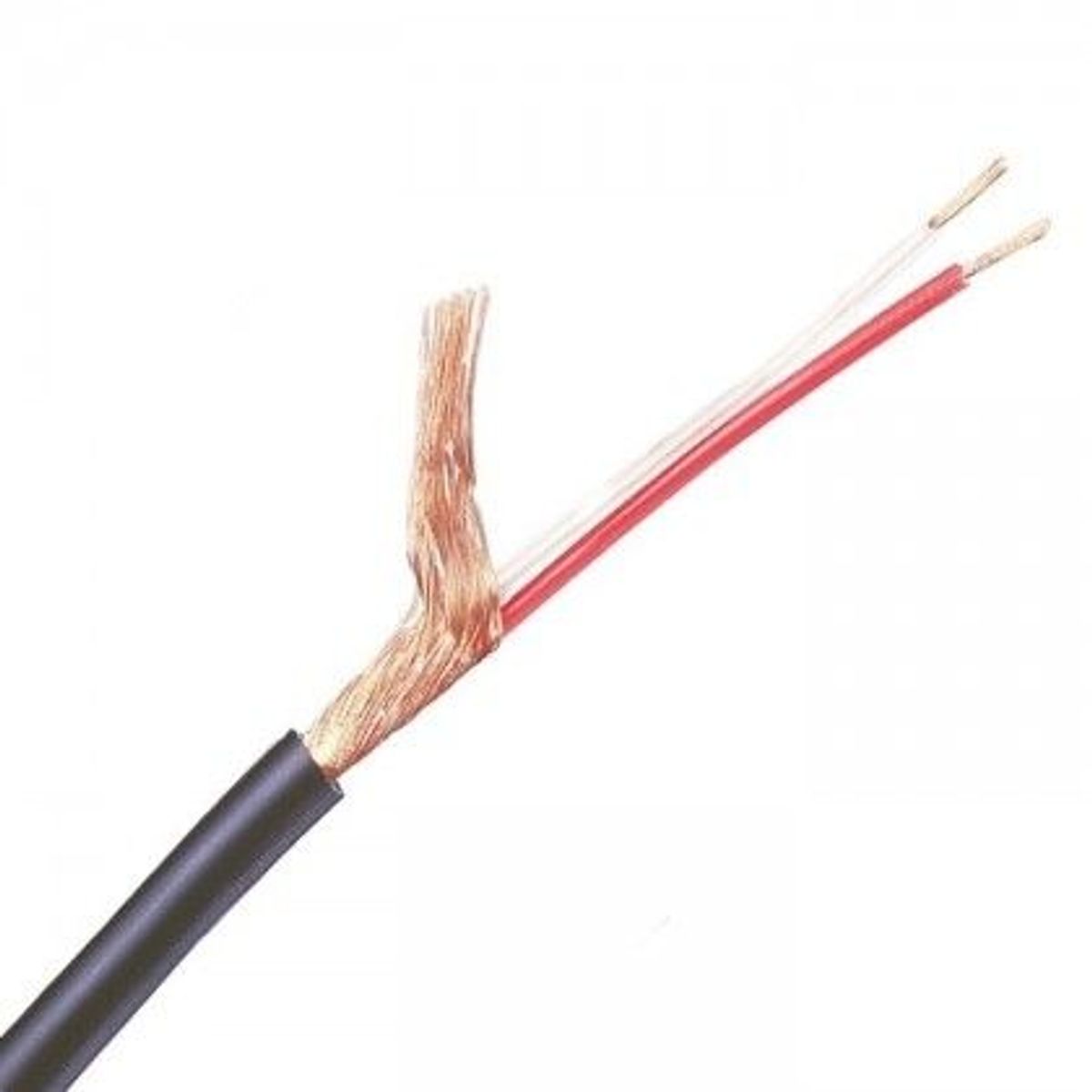

LOW COST HIGH PERFORMANCE SUPERFLEXIBLE BALANCED MIC. CABLES - MOGAMI -- 2552

  ■ A specially developed high performance yet economical series of low impedance balanced microphone cables. These cables are small in size and special rubber‐like PVC jacket is extremely  flexible and exhibits good resistance to rough handling and abrasion. High grade insulation material is designed to minimize heat shrinkage during soldering which  allows easy termination to XLR type connectors. Available in both overall and individually sheilded types.

  ■ Part No.2552 Superflexible Light Weight With Overall Shield Here is an extremely limp and flexible cable for all types of  audio/visual and industrial audio applications. XLPE insulation and a strong rubber‐like outer jacket makes this cable ideal where a durable yet economical cable is needed.

  ■ Part  No. 2552

  ■ O.D. mm : 5.0φ0.197"

  ■ Flex  Life: 11,000 cycles

  ■ Tensile  Strength: 421N

  ■ Colors: Black

  ■ No. of Conductor: 2

  ■ Conductor: 12/0.12 A, Size mmqs: 0.135mm2 ＃26AWG,

  ■ Insulation: Ov. Dia.mm: 1.5φ0.059", Material: XLPE,

  ■ Shield:  Braid 70/0.12A

  ■ Jacket: Ov. Dia.mm: 5.0φ0.197", Material: Flexible PVC, Core color: Black

  ■ Trở kháng 20 độ: Inner Cond: 0.14Ω/m, Shield: 0.024Ω/m

  ■ Dung kháng: @1kHz, 20 độ: K0: 90pF/m K1: 10pF/m

  ■ Cảm kháng giữa 2 dây @1kHz. 20 độ: 0.8μH/m

  ■ Electrostatic Noise: 50 mV Max.

  ■ Electromagnetic Noise: 0.15 mV Max.

  ■ Voltage Breakdown: Must withstand at 500V/15 sec.

  ■ Insulation Resistance:10^5MΩ・m Minimum at 125 V, 20 deg C
