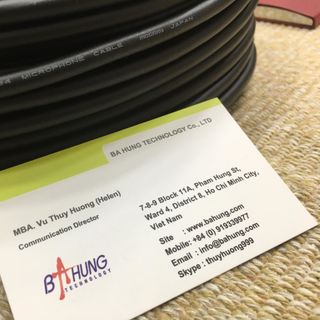

Reference Standard NEGLEX Quad High Definition Mic. 4Quad Conductor 4 lõi - MOGAMI -- 2534
NEGLEX type Quad Cables have been developed for the highest quality recording applications
Cable NEGLEX No.2534 has become popular around the world as the standard for high quality digital and analog recording. The cable has also become popular for use with unbalanced equipment, such as
high quality pre-amp, amp inputs and tape decks.

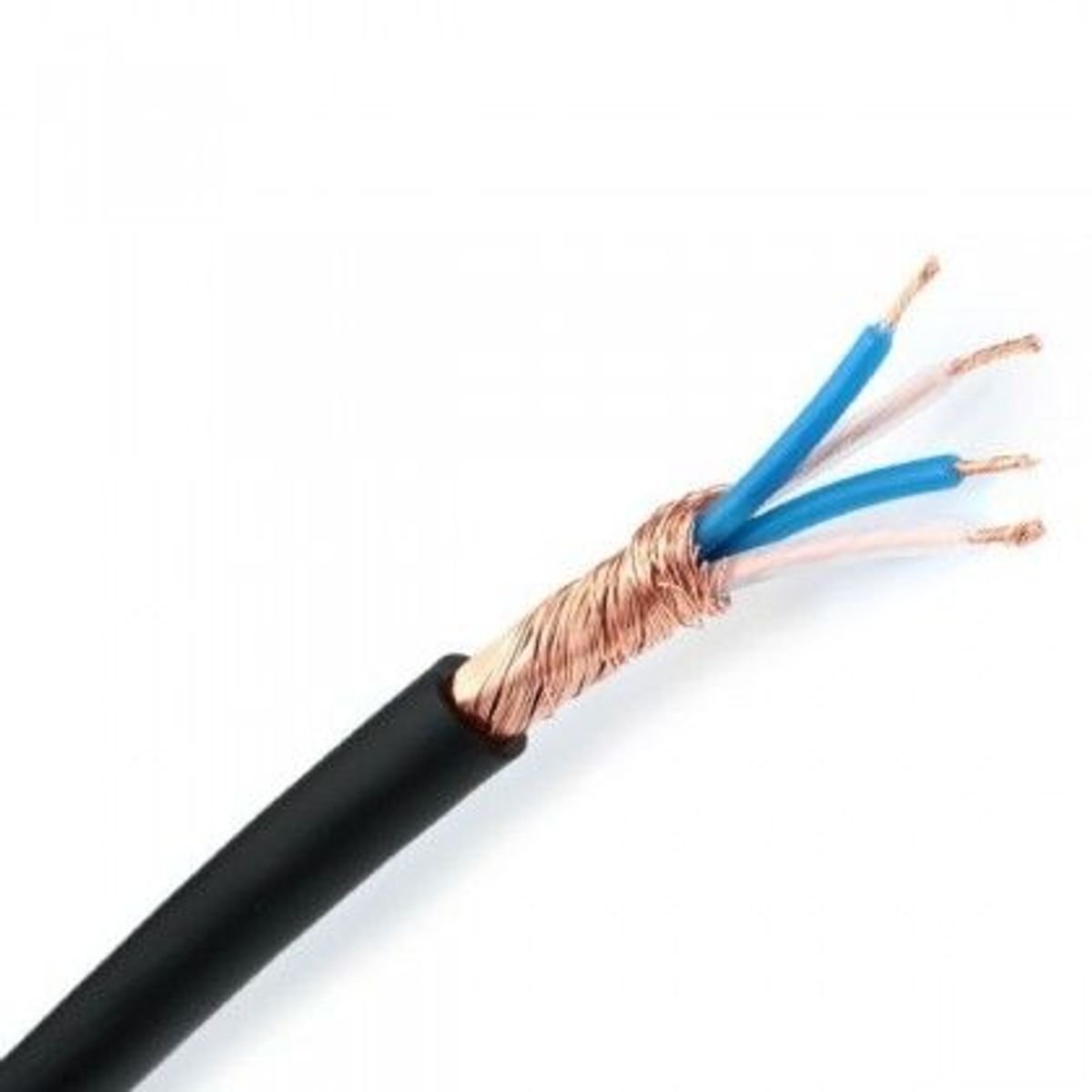

■ Conductor: 20/0.12 OFC, Size mmqs: 0.226mm2 #24AWG
■ Insulation: Ov. Dia.mm: 1.6φ0.063", Material: XLPE,
■ Served Shield: Approx.72/ 0.12A
■ Jacket: Ov. Dia.mm: 6.0φ0.236", Material: Flexible PVC
■ Trở kháng 20 độ: Inner Cond: 0.083Ω/m, Shield: 0.012Ω/m
■ Dung kháng: @1kHz, 20 độ: K0: 65pF/m K1: 13pF/m K2: 4pF/m, Cond-Cond 97pF/m, Cond.-Shield: 110pF/m
■ Cảm kháng giữa 2 dây @1kHz. 20 độ: 0.4μH/m
■ Electrostatic Noise: 50 mV Max.
■ Electromagnetic Noise: 0.15 mV Max.
■ Voltage Breakdown: Must withstand at 500V/15 sec.
■ Flex Life: 11,000 cycles
■ Tensile Strength: 686 N
■ Applicable Temperature: -20 độ c ~ + 70 độ c
■ Trọng lượng 11 kg/200m
