Model

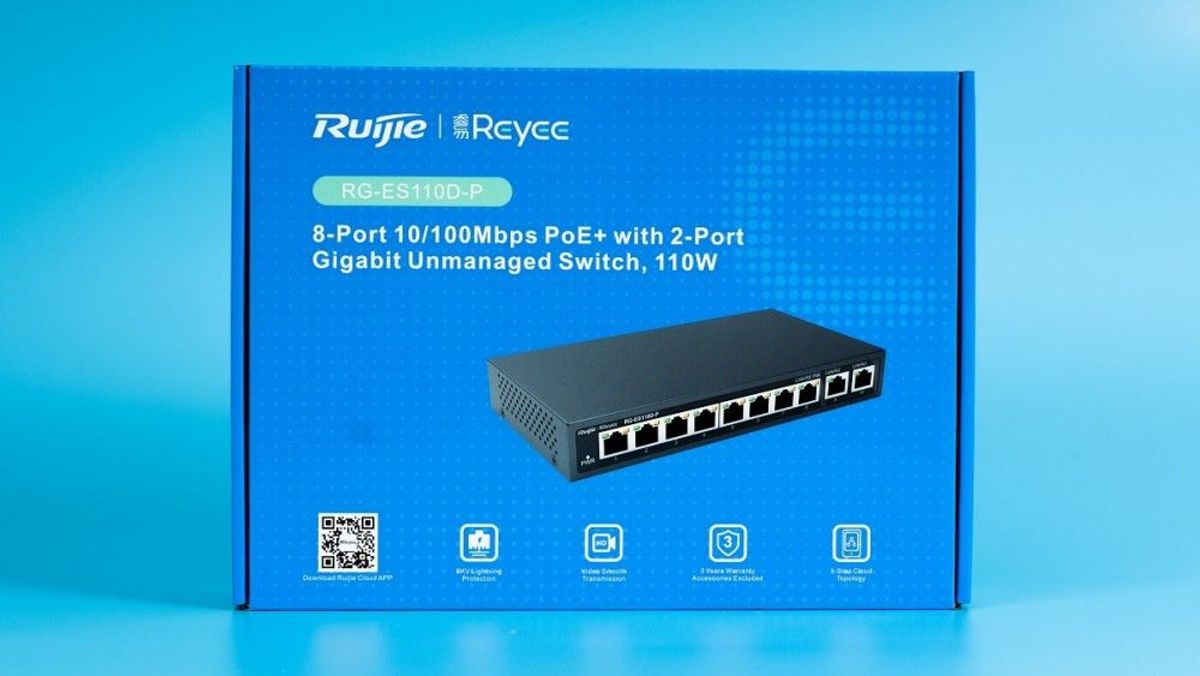

RG-ES110D-P
Hardware specifications
Ports
8*10/100 Mbps PoE/PoE+ Ports
2*10/100/1000 Mbps uplink ports
Operating mode
Half-duplex, full-duplex, auto-negotiation mode
Support auto MDI/MDIX
Switching capacity
5.6Gbps
Package forwarding rate
4.17Mpps
Power supply
Surge protection

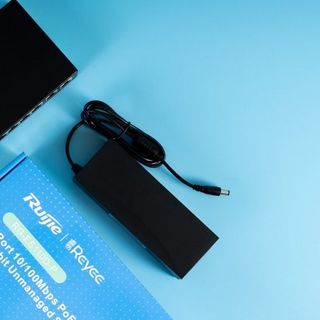

Adapter:
Common mode: ±4 kV
Differential mode: ±2 kV
Network ports:
Non-PoE ports: ±4 kV
PoE ports: ±6 kV

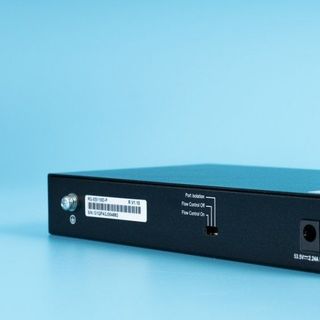

Port Mode
“Flow Control On”
“Flow Control Off”
“Port Isolation”
from left to right
Power consumption
129W
PoE power budget
110W
Fan
NA
Dimensions
190 x 100 x 28 mm
(W x D x H)
Operating temperature
0℃ to 45℃
Storage temperature
-40℃ to 70℃
Operating humidity
10% to 90% RH
Storage humidity
5% to 95% RH
