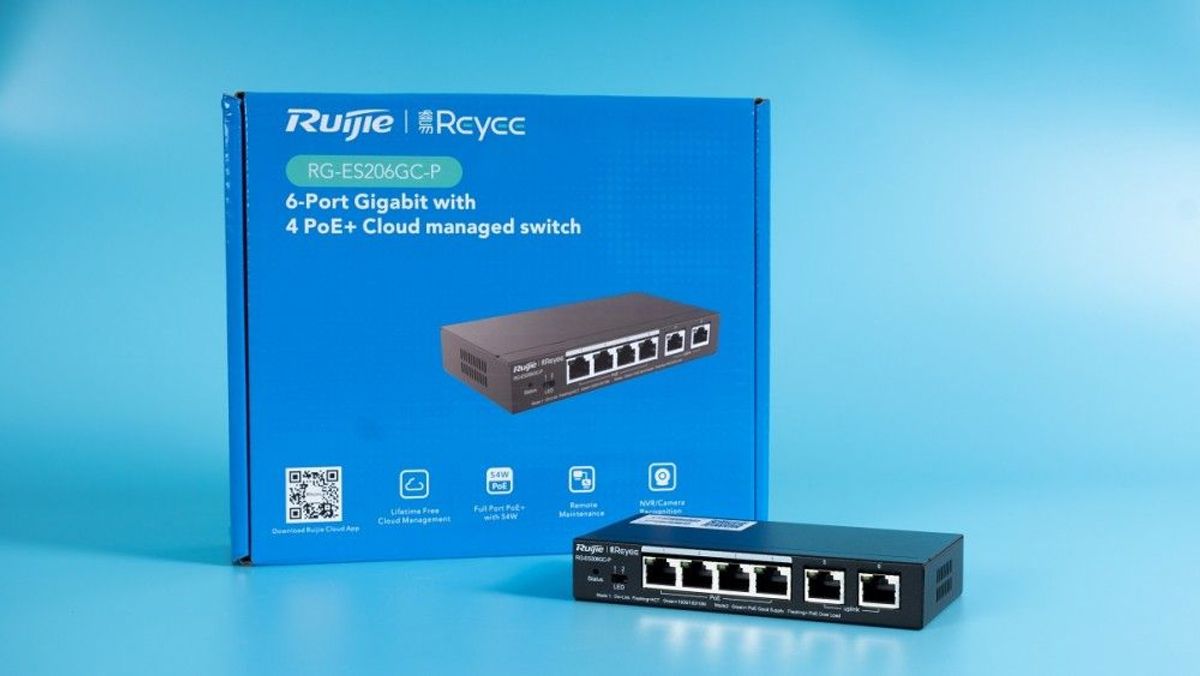

ModelRG-ES206GC-P
Switching capacity
12Gbps
Switching Cache
1Mbit
Package forwarding rate
8.9Mpps
Ports
4 10/100/1000 Base-T ports (PoE/PoE+)
2 10/100/1000 Base-T uplink port
PoE Standard
IEEE 802.3at / 802.af
PoE Power Budget
54W
Speed / Duplex mode
Auto / Half / Full duplex Speed auto / 10/ 100 /1000
MAC address
4K
Maximum Number of VLANs
16
Allowed VLAN ID
1 ~ 4094
Port-based VLAN
Support
Flow Control
Support
Loop Protection
Support
Unknown Unicast Suppression
Support
Multicast / Broadcast Storm Suppression
Support
Mirroring
Many-to-One Mirroring
Port Isolation
Support
Cable Testing
Support
ICMP Ping
Support
DNS
DNS Client
Telnet
Support
MACC
Support
Port Surge
Common mode: 4KV
Electrostatic Discharge
Air discharge: 6KV
Contact discharge: 4KV
Power Consumption
≤ 60W
Power supply
External power adapter
100-240V
Dimensions (W x D x H)
148mm*78mm*26mm
Weight
0.9 kg (with package)
MTBF
>200K
Operating temperature
0 to 40°C
Storage temperature
-40~70ºC
Operating humidity
10% to 90% RH
Storage humidity
5% to 95% RH
Operating Altitude
-500 ~ 5000 meters
FAN
Fanless
Management
Support management and configuration through web management interface, MACC cloud platform and mobile app
Safety Standard Ground Resistance
GB4943-2011, EN 62638-1
EMC
GB9254-2008, EN 55032, EN61000-3-2, EN61000-3-3, EN 55035
