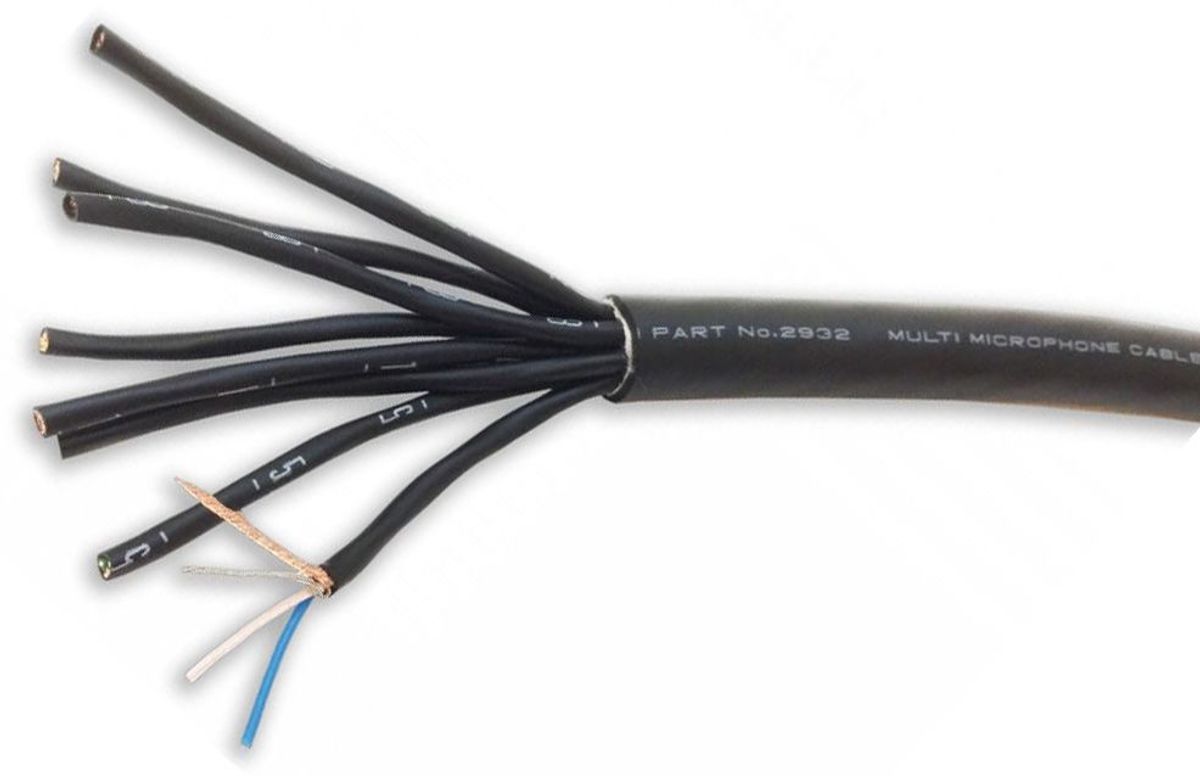

SNAKE CABLES MULTICORE 8Ch - MOGAMI -- 2932

Mogami multicore cables are designed for the highest level of audio performance and feature superb electrical and mechanical characteristics while remaining compact, superflexible and easy to use.

 ■ CL2 rated version available. Conductor size of CL2 rated version is thicker #25AWG that it is also recommended for rugged application and firm and easier crimp terminal connector wiring as well as NEC fire regulation requirement.

 ■ Individually twisted shielded pairs, available in 8 channels.

 ■ Rugged and flexible construction that is easy to handle, even at temperatures down to -20˚C-4˚F.

 ■ Easy cable identification system:    ※Channel numbers are printed and underlined on each core jacket to ensure correct identification, regardless  of which end  is stripped.    ※Outer jackets of each pair are color coded by standard resistor color code, allowing quick identification  of conductor pairs.    ※Inner conductors are also color coded based on the international standard resistor color code. Each pair  is color coded by jacket and conductor color combination.

  ■ Each channel has a drain wire and served spiral bare copper shield.  The drain wire simplify termination and can be crimped by the same size as the inner conductor pair.

  ■ XLPE Cross  Linked  Polyethylene insulation provides superb electrical characteristics and will not melt  or shrink back during soldering.

  ■ Conductor: 30/0.08 0.15mm2 #26AWG

  ■ Insulation: 1.0φ XLPE,

  ■ Drain wire: 7/0.18TA 0.18mm2 #25AWG

  ■ Shield:  Approx. 60/0.10A Served sprial Shield

  ■ Jacket vovering: 2.8φ Flexible PVC

  ■ Trở kháng 20 độ: Inner Cond: 0.13Ω/m, Shield: 0.030Ω/m

  ■ Dung kháng: @1kHz, 20 độ: K0: 130pF/m K1: 12pF/m

  ■ Cảm kháng giữa 2 dây @1kHz. 20 độ: 0.6μH/m

  ■ Electrostatic Noise: 2.5 mV Max.

  ■ Electromagnetic Noise: 0.1 mV Max.

  ■ Voltage Breakdown: Must withstand at 500V/15 sec.

  ■ Insulation Resistance:10^5MΩ・m Minimum at 125 V, 20 deg C~70 degC
